API 5L Line Pipe for Oil & Gas Pipeline Projects
We can supply line pipe according to the required grade, PSL level, manufacturing method, dimensions, end configuration, delivery condition, coating, inspection, and documentation. This enables EPC contractors, pipeline contractors, distributors, and project buyers to source line pipe according to their technical and commercial requirements.
API 5L Line Pipe Grades We Supply
We supply API 5L line pipes in a wide range of grades from Grade B to X80, providing different strength levels for
oil & gas transmission, pipeline infrastructure, and industrial fluid transportation projects.
|
API 5L Grade |
Min. Yield Strength |
Min. Tensile Strength |
Typical Use |
Available PSL |
|
245 MPa |
415 MPa |
General pipeline applications |
PSL1 / PSL2 |
|
|
290 MPa |
414 MPa |
Gathering and transmission |
PSL1 / PSL2 |
|
|
360 MPa |
460 MPa |
Oil & gas transmission |
PSL1 / PSL2 |
|
|
415 MPa |
520 MPa |
Higher-strength pipelines |
PSL1 / PSL2 |
|
|
450 MPa |
535 MPa |
High-pressure / long-distance projects |
PSL1 / PSL2 |
|
|
485 MPa |
565 MPa |
High-strength transmission |
PSL1 / PSL2 |
|
|
555 MPa |
625 MPa |
High-strength pipeline projects |
PSL1 / PSL2 |

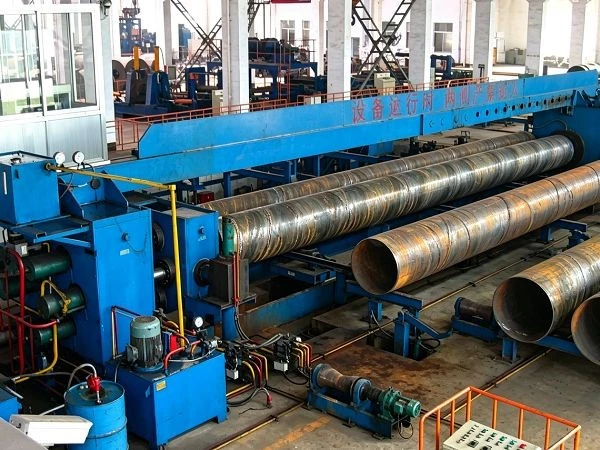

API 5L Seamless & Welded Line Pipe Types
We offer different API 5L pipe manufacturing options to accommodate project-specific requirements
for pipe size, wall thickness, production method, and application.
Seamless Steel Pipe
HFW / ERW Line Pipe
SSAW Line Pipe
LSAW Line Pipe
API 5L Line Pipe Specifications
We supply API 5L line pipe according to the required grade, pipe type, dimensions, end configuration,
delivery condition, coating, and inspection requirements.
|
|
Specification |
Options |
|
API Spec 5L |
API Spec 5L |
|
|
PSL |
PSL1 / PSL2 |
|
|
Grades |
B / X42 / X52 / X60 / X65 / X70 / X80 |
|
|
Pipe Type |
Seamless / HFW / ERW / SAWL / SAWH |
|
|
Outside Diameter |
21.3-2500mm |
|
|
Wall Thickness |
2-150mm |
|
|
Pipe Length |
Fixed / SRL / DRL |
|
|
End Type |
Plain / Beveled |
|
|
Delivery Condition |
As specified |
|
|
Coating |
Bare / FBE / 3LPE / 3LPP etc. |

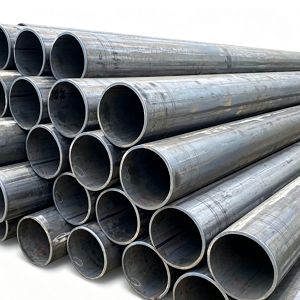

Explore Our API 5L Line Pipe Range
Browse our API 5L line pipe products. The product page provides more information on applicable
standards, manufacturing options, and typical application scenarios.
-
![API 5L X80]()
API 5L X80API 5L X80 (ISO 3183 L555) is an ultra-low carbon microalloyed high-strength pipeline steel, belonging to the X80 grade under the API Spec 5L standard. It has a minimum yield strength of 80,000...
-
![API 5L X70]()
API 5L X70API 5L X70 (ISO 3183 L485) is a low-carbon micro-alloyed high-strength pipeline steel belonging to the X70 grade under the API Spec 5L standard. It has a minimum yield strength of 70,000 psi (485...
-
![API 5L X65]()
API 5L X65API 5L X65 (ISO 3183 L450) is a low-carbon micro-alloyed high-strength pipeline steel belonging to the X65 grade under the API Spec 5L standard. It has a minimum yield strength of 65,000 psi (450...
-
![API 5L X60]()
API 5L X60API 5L X60 (ISO 3183 L415) is a low-carbon micro-alloyed high-strength pipeline steel belonging to the X60 grade under the API Spec 5L standard. It has a minimum yield strength of 60,000 psi (415...
-
![API 5L X52]()
API 5L X52API 5L X52 (ISO 3183 L360) is a low-carbon microalloyed line pipe steel belonging to the X52 grade under the American Petroleum Institute (API) Spec 5L standard. It has a minimum yield strength of...
-
![API 5L X42]()
API 5L X42API 5L X42 (ISO 3183 L290) is a low-carbon microalloyed line pipe steel belonging to the X42 grade under the API Spec 5L standard. It has a minimum yield strength of 42,000 psi (290 MPa) and a...
-
![API 5L Grade B]()
API 5L Grade BAPI 5L Gr.B (ISO 3183 L245) is a low-carbon line pipe steel, belonging to Grade B steel under the API Spec 5L standard, one of the most fundamental and widely used grades of line pipe steel. It...
API 5L Line Pipe Inspection & Testing
We conduct inspections and testing throughout the production process to verify material
properties, pipe integrity, dimensional specifications, and more.
Chemical Composition Testing
We conduct chemical analysis on the pipes to verify the steel's composition and confirm compliance with the specified grade and relevant requirements.

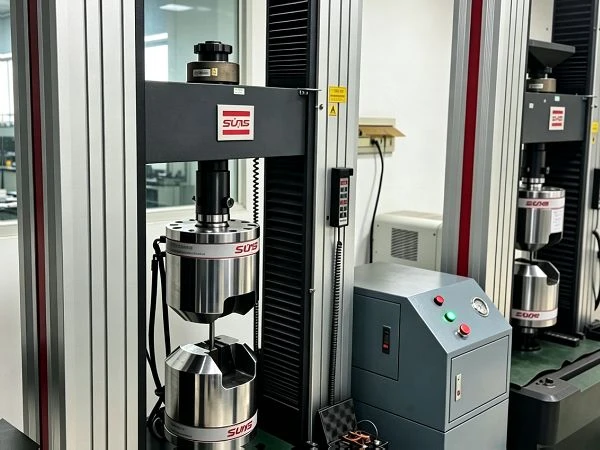

Mechanical Testing
We can conduct tensile strength, yield strength, elongation, and impact tests as required to verify the mechanical properties of the line pipe.
Hydrostatic Testing
We conduct hydrostatic testing on line pipe to verify the pipeline's pressure-bearing integrity and to detect potential leaks or defects.

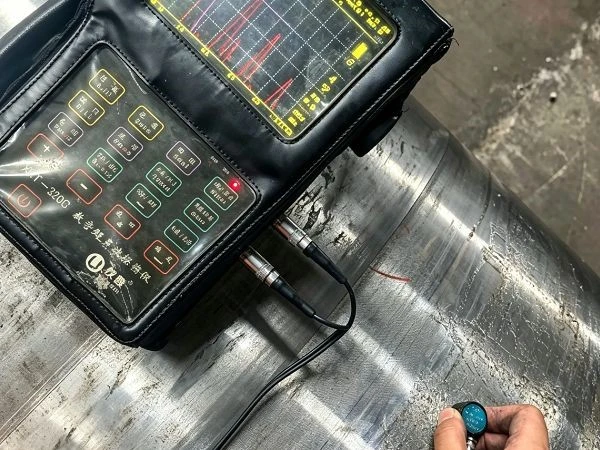

Non-Destructive Testing
We can arrange ultrasonic testing, magnetic particle testing, and other applicable non-destructive testing (NDE) methods to inspect the pipe body and welds, depending on the type of pipe and project requirements.

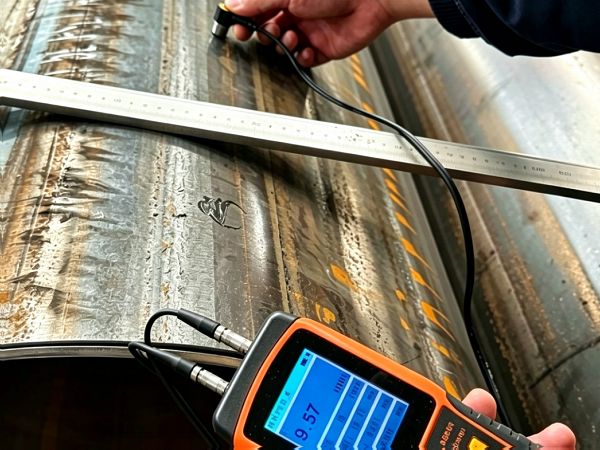

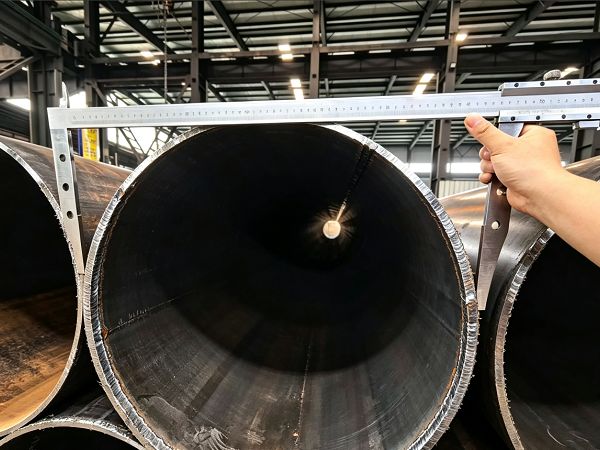

Dimensional & Visual Inspection
We can inspect outer diameter, wall thickness, length, straightness, end condition, surface quality, and other dimensional characteristics in accordance with applicable standards.

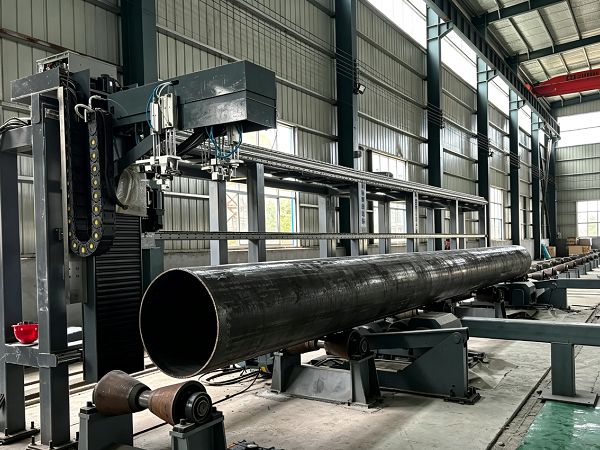

Weld & Surface Inspection
For welded line pipe, we inspect the welds in accordance with applicable manufacturing and inspection requirements. Prior to final delivery, the surface condition and pipe end quality are also verified.
Quality Documentation & Material Traceability
-
Material Test Certificates
We provide mill inspection certificates containing details on chemical composition, mechanical properties, heat numbers, and other relevant product information.
-
Heat Number Traceability
We maintain heat number and product identification throughout the production and inspection processes to ensure material traceability and facilitate document verification.
-
Product Marking
Our line pipe products are marked with the steel grade, specifications, dimensions, heat number, manufacturer details, and other necessary information.
-
Third-Party Inspection
We can also arrange third-party inspections in accordance with the requirements of customers, EPC contractors, or specific projects.
API 5L Line Pipe for Pipeline Applications
API 5L line pipe for crude oil and petroleum product transportation, including trunk pipelines and regional transmission systems.
Line pipe for natural gas transmission and pipeline infrastructure, with suitable grades, wall thicknesses, and testing requirements specified for each project.
Suitable for oil and gas gathering systems that transport produced fluids from wells and production facilities to processing or transmission facilities.
High-strength line pipe for large-scale, long-distance pipeline projects where material grade, wall thickness, pipe dimensions, and quality requirements are defined by project specifications.
API 5L line pipe for selected offshore oil and gas transportation applications, with material, testing, coating, and inspection requirements adapted to project conditions.
Line pipe for energy infrastructure and industrial fluid transportation applications where API 5L or other specified pipeline standards are required.
Why Choose Xurui for API 5L Line Pipe
As an experienced API 5L line pipe manufacturer and supplier, Xurui supports distributors, EPC
contractors, pipeline contractors, and project buyers with reliable product supply,
quality assurance, certification support, and export services.
Consistent Quality Control
We control key quality points from raw material inspection to final delivery, with production and inspection records maintained for quality verification and material traceability.
01
Factory-Direct Supply
We provide direct quotations based on your grade, size, wall thickness, pipe type, coating, quantity, and delivery requirements, helping control overall procurement costs.
02
API 5L & International Certifications
We hold valid API 5L, ISO 3183, GB/T 9711, CE, and other applicable certifications to support project compliance and technical approval.
03
Reliable Export & Delivery
With more than 10 years of export experience, we provide protective export packaging and coordinated shipping arrangements to help ensure safe and reliable delivery.
04
FAQ
Q: What is your minimum order quantity (MOQ) for API 5L line pipe?
A: Our MOQ is flexible depending on pipe size, grade, and stock availability. For standard sizes, we can support small trial orders. For customized specifications, MOQ will be confirmed upon discussion.
Q: What is the typical delivery time for API 5L line pipe?
A: For standard sizes in stock, delivery is usually within 7–15 days. For custom or large-volume orders, lead time is typically 4–8 weeks depending on specifications and quantity.
Q: What certifications and test reports do you provide?
A: We provide mill test certificates (MTC), dimensional inspection reports, and third-party inspection reports (SGS, BV, TUV) upon request. Our pipes comply with API 5L, ISO 3183, and GB/T 9711 standards.
Q: Do you support third-party inspection?
A: Yes. We welcome third-party inspections from recognized organizations such as SGS, BV, and TUV. Inspection can be arranged before shipment.
Q: Do you supply PSL1 and PSL2 line pipe?
A: Yes. Both PSL1 and PSL2 are available. PSL2 is recommended for high-pressure, low-temperature, or sour service applications.
Q: Do you support shipping to our country?
A: Yes. We have over 10 years of export experience to Europe, North America, Southeast Asia, the Middle East, and other regions. We can arrange FOB, CIF, CFR, and door-to-door delivery.
Q: Do you provide technical support for material selection?
A: Yes. Our engineering team can assist with material selection based on your working conditions, including pressure, temperature, medium, and whether H₂S/CO₂ is present.
With abundant experience, we are one of the most professional api 5l line pipe manufacturers and suppliers in China. We are committed to providing high quality metal products for global clients. Please feel free to wholesale bulk high-grade api 5l line pipe in stock here from our factory.
